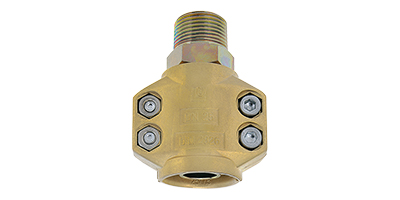

5431 High pressure steam hose couplings
High pressure steam hose couplingsMale thread safety clamp screwings to be used for saturated steam safety clamps included Please re-tighten bolts/screws after first use!
|
|
| Norm | DIN EN 14423 |
| Norm thread | DIN 2999 |
| Thread description | BSPT thread / R thread |
| Material | Zink plated steel, yellow passivated |
| Material safety-clamps | Brass |
| Max. WP water | 18 bar |
| Max. operating pressure steam | 18 bar |
| Max. temperature hot water | +120 °C |
| Max. temperature steam | +210 °C |
Description
| Art.-no. | For hose Ø inner mm | For hose Ø outside mm | Wall mm | Male thread | Weight |
|---|---|---|---|---|---|
| 5431013060 | 13 | 24-27 | 6,0 | 1/2″ | 0,447 kg |
| 5431019070 | 19 | 32-35 | 7,0 | 3/4″ | 0,700 kg |
| 5431025075 | 25 | 39-42 | 7,5 | 1″ | 0,933 kg |
