3000 Induform®/RR

3000 Induform®/RR

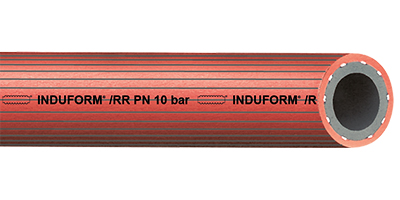

INDUFORM®/RR

Waterhose

for medium duty and hose reel applications.

Marking:
 Induform®/RR PN 10 bar



Norm EN ISO 1307:2008
WP at 20°C 10 bar
BP 30 bar
Min. temperature -20 °C
Max. temperature +60 °C
Compound tube PVC
Construction tube Smooth
Color tube Black
Compound cover PVC
Construction cover Ribbed
Color cover Red
Reinforcements Polyester plies
Article no.: 3000 Category:

Description

Art.-no. Ø Inner mm Wall mm Ø Outer mm Bending radius mm Weight/mtr Length mtr.
3000013000 13 3,0 19 80 0,205 kg 40/100
3000019000 19 3,5 26 110 0,340 kg 40
3000025000 25 4,0 33 150 0,495 kg 40
3000032000 32 6,0 44 180 0,975 kg 40

Application: High quality ribbed water hose that is characterized by the strong cross-braided insertions and a production process in which the inner and outer walls are connected with each other with heat, which offers a much stronger adhesion than many glued alternatives. Hose can be used as a water supply hose at construction sites in industry, shipyards and other locations where higher quality requirements are set for a water hose. Due to its special construction, hose is extremely suitable for reel applications.

Remark: Cutted length is not possible

We recommend assembly with:
