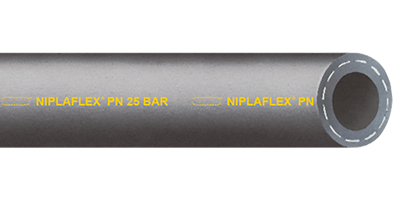

3240 Niplaflex®
NIPLAFLEX®Multi purpose hose for water, air, oil, fuel, acids and leach, fertilizers and pesticides.
|
|
Norm | EN ISO 1307:2008 |
WP at 20°C | 25 bar |
BP | 75 bar |
Min. temperature | -20 °C |
Max. temperature | +70 °C |
Compound tube | NBR/PU/PVC |
Construction tube | Smooth |
Color tube | Black |
Compound cover | NBR/PVC |
Construction cover | Smooth |
Color cover | Black |
Resistance cover |
UV resistant
Ozone resistant
Ageing resistant
Weather resistant
|
Reinforcements | Polyester plies |
Description
Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
---|---|---|---|---|---|---|
3240006000 | 6 | 3,0 | 12 | 40 | 0,115 kg | 100 |
3240008000 | 8 | 3,5 | 15 | 50 | 0,170 kg | 100 |
3240009000 | 9 | 3,5 | 16 | 55 | 0,185 kg | 100 |
3240010000 | 10 | 3,5 | 17 | 60 | 0,200 kg | 100 |
3240013000 | 13 | 4,0 | 21 | 80 | 0,290 kg | 100 |
3240019000 | 19 | 4,5 | 28 | 110 | 0,450 kg | 50 |
3240025000 | 25 | 5,5 | 36 | 160 | 0,715 kg | 50 |
Application: Very flexible, oil and petrol resistant multipurpose hose. Also suitable for the transport of water, air, light acids and alkalis, pesticides and fertilizers. Hose is used in construction, building, agriculture, industry, workshops, etc.
Remark:
- Cutted length possible
