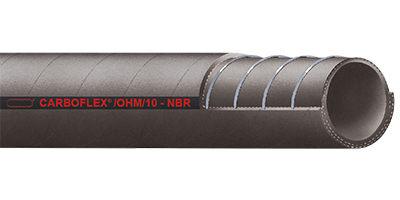

CARBOFLEX®/OHM/10

Oil and petrol suction/discharge hose

suitable as tank truck hose.

Marking:
 Carboflex®/Ohm/10 – NBR – Öl Saug/Druck – Oil suction/discharge – PN 10 bar – Ω/T



Norm EN ISO 1307:2008
WP 10 bar
BP 30 bar
Vacuum 0,9 bar
Min. temperature -40 °C
Max. temperature +90 °C
Max. temperature oil +100 °C
Electr. resistance tube Electrical conductive <10⁶ Ω
Electr. resistance cover Antistatic <10⁹ Ω
Eletr. resistance tube to cover Antistatic <10⁹ Ω
Compound tube NBR
Construction tube Smooth
Color tube Black
Compound cover SBR/EPDM
Construction cover Fabric finish
Color cover Black
Resistance tube
Petrol resistant
Oil resistant
Aromatic content maximum 50 %
Resistance cover
Ozone resistant
Wear-resistant
Reinforcements
Textile plies
Steel spiral
Article no.: 3350 Category:

Description

Art.-no. Ø Inner mm Wall mm Ø Outer mm Bending radius mm Weight/mtr Length mtr.
3350025000 25 5,5 36 55 0,840 kg 40
3350032000 32 5,5 43 65 1,000 kg 40
3350038000 38 6,5 51 80 1,370 kg 40
3350042000 42 6,5 55 120 1,500 kg 40
3350045000 45 6,5 58 130 1,600 kg 40
3350050000 51 6,5 64 150 1,800 kg 40
3350063000 63 7,5 78 200 2,500 kg 40
3350075000 75 8,0 91 350 3,200 kg 40
3350090000 90 8,0 106 370 3,700 kg 40
3350100000 100 8,0 116 400 4,200 kg 40
3350125000 127 8,5 144 500 5,000 kg 20
3350150000 152 11 174 800 8,600 kg 20

Application:  Very high quality, robust and flexible suction and discharge hose with steel spiral. Suitable for heavy working conditions and extremely suitable as a tanker hose for industrial cleaning. Hose meets all guidelines from the SIR and can be used in various ATEX zones. The hose is often used during the loading and unloading of tanks, fuel tanks and ships for unleaded fuels with a maximum aromatic content up to 50%. Suitable for industrial oil, heating oils, biodiesel and mineral based hydraulic oils.

Remark:

  • Cutted length possible
