3830 Corrosiv®/SP/EN

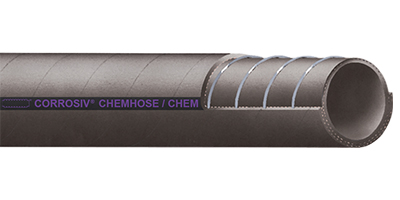

CORROSIV®/SP/ENChemical suction and discharge hose suitable for acids and lyes with a high concentration. Marking: Not resistant against hydrocarbons!
|
|
| Norm |
EN 12115:2011
TRbF 131, part 2, § 5.5
|
| WP | 16 bar |
| BP | 64 bar |
| Vacuum | 0,9 bar |
| Min. temperature | -35 °C |
| Max. temperature | +95 °C |
| Max. temperature steam cleaning | +130 °C |
| Electr. resistance tube | Electrical conductive <10⁶ Ω |
| Electr. resistance cover | Electrical conductive <10⁶ Ω |
| Eletr. resistance tube to cover | Antistatic <10⁹ Ω |
| Compound tube | EPDM |
| Construction tube | Smooth |
| Color tube | Black |
| Compound cover | EPDM |
| Construction cover | Fabric finish |
| Color cover | Black |
| Reinforcements |
Textile plies
Steel spiral
|
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 3830025000 | 25 | 6,0 | 37 | 150 | 0,780 kg | 40 |
| 3830032000 | 32 | 6,0 | 44 | 175 | 1,030 kg | 40 |
| 3830038000 | 38 | 6,5 | 51 | 225 | 1,250 kg | 40 |
| 3830050000 | 50 | 8,0 | 66 | 275 | 2,100 kg | 40 |
| 3830063000 | 63 | 8,0 | 79 | 300 | 2,540 kg | 40 |
| 3830075000 | 75 | 8,0 | 91 | 350 | 2,800 kg | 40 |
| 3830100000 | 100 | 8,0 | 116 | 450 | 4,100 kg | 40 |
Application: The hose is extremely suitable for transport of acids and alkalis in high concentrations, hot water and various cleaning agents. The hose is extremely flexible and meets all the requirements set in EN12115:2011 norm regarding the bending radius, flame retardant, elongation, bust pressure safety factor of 1:4, electrical resistance (thanks to the conductive tube, the charged static electricity can be safely discharged so that the hose can be used in various ATEX zones) etc. The hose can be used for suction and pressure applications due to the steel spiral.
Remark:
- Max. temperature depends on the medium.
- Not resistant against hydrocarbons!
- Cutted length possible
