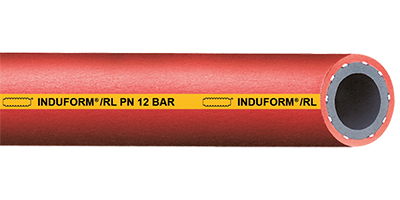

4130 Induform®/RL
INDUFORM®/RLWaterhose for medium duty applications. Marking:
|
|
| Norm | EN ISO 1307:2008 |
| WP at 20°C | 12 bar |
| BP | 36 bar |
| Min. temperature | -20 °C |
| Max. temperature | +60 °C |
| Compound tube | PVC |
| Construction tube | Smooth |
| Color tube | Black |
| Compound cover | PVC |
| Construction cover | Smooth |
| Color cover | Red |
| Longitudinal stripes | 1 yellow stripe |
| Reinforcements | Polyester plies |
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 4130013000 | 13 | 3,0 | 19 | 80 | 0,205 kg | 40 |
| 4130019000 | 19 | 3,5 | 26 | 110 | 0,340 kg | 40 |
| 4130025000 | 25 | 4,0 | 33 | 150 | 0,500 kg | 40 |
Application: High quality smooth water hose that is characterized by the strong cross-braided insertions and a production process in which the inner and outer walls are connected with each other with heat, which offers a much stronger adhesion than many glued alternatives. Hose can be used as a water supply hose at construction sites in industry, shipyards and other locations where higher quality requirements are set for a water hose.
Remark: Cutted length is not possible
