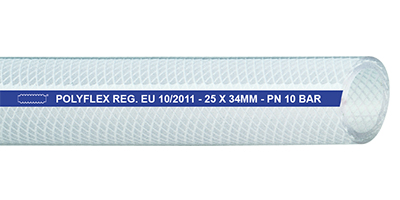

4200 Polyflex
POLYFLEXPVC air pressure hose for water and air. Limited chemical resistant and non-toxic food quality hose. Marking:
|
|
| Norm |
EN ISO 1307:2008
EU 1935/2004
EU 10/2011 Cat. A
EU 10/2011 Cat. B
EU 10/2011 Cat. C
LFGB
|
| Min. temperature | -20 °C |
| Max. temperature | +60 °C |
| Compound tube | PVC |
| Construction tube | Smooth |
| Color tube | Transparent |
| Compound cover | PVC |
| Construction cover | Smooth |
| Color cover | Transparent |
| Reinforcements | Polyester plies |
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | WP at 20°C bar | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 4200005011 | 5 | 3,0 | 11 | 20 | 0,100 kg | 50 |
| 4200006012 | 6 | 3,0 | 12 | 20 | 0,110 kg | 50 |
| 4200008014 | 8 | 3,0 | 14 | 20 | 0,135 kg | 50 |
| 4200009015 | 9 | 3,0 | 15 | 20 | 0,145 kg | 50 |
| 4200010016 | 10 | 3,0 | 16 | 20 | 0,155 kg | 50 |
| 4200012021 | 12 | 4,5 | 21 | 15 | 0,295 kg | 50 |
| 4200013019 | 13 | 3,0 | 19 | 15 | 0,190 kg | 50 |
| 4200013020 | 13 | 3,5 | 20 | 15 | 0,230 kg | 50 |
| 4200015021 | 15 | 3,0 | 21 | 15 | 0,215 kg | 50 |
| 4200016024 | 16 | 4,0 | 24 | 10 | 0,275 kg | 50 |
| 4200019027 | 19 | 4,0 | 27 | 10 | 0,370 kg | 50 |
| 4200025034 | 25 | 4,5 | 34 | 10 | 0,470 kg | 50 |
| 4200030038 | 30 | 4,0 | 38 | 10 | 0,550 kg | 50 |
| 4200032042 | 32 | 5,0 | 42 | 10 | 0,740 kg | 50 |
| 4200038048 | 38 | 5,0 | 48 | 10 | 0,860 kg | 50 |
| 4200050060 | 51 | 6,5 | 64 | 7 | 1,390 kg | 25 |
Application: Flexible and very durable PVC hose with an optimal adhesion due to the unique production process which reduces possible leakage to a minimum. Because the inserts are optimally positioned in the hose, the hose does not twist. The hose has limited chemical resistance and is made of nontoxic PVC quality. Suitable for various compressed air machines, tools and for transport of various liquids or liquid foodstuffs.
Remark:
- Cutted length is not possible
