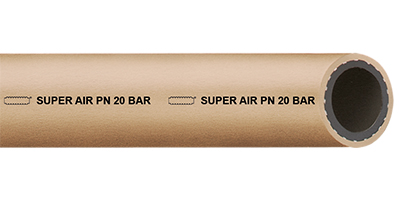

4210 Super/AIR
SUPER AIRThermoplastic air pressure hose Marking:
|
|
| Norm | EN ISO 1307:2008 |
| WP at 20°C | 20 bar |
| BP | 60 bar |
| Min. temperature | -20 °C |
| Max. temperature | +60 °C |
| Compound tube | PVC |
| Construction tube | Smooth |
| Color tube | Black |
| Compound cover | PVC |
| Construction cover | Smooth |
| Color cover | Beige |
| Resistance cover |
UV resistant
Ozone resistant
Ageing resistant
Weather resistant
|
| Reinforcements | Polyester plies |
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 4210006000 | 6 | 2,5 | 11 | 50 | 0,090 kg | 50 |
| 4210008000 | 8 | 2,5 | 13 | 60 | 0,115 kg | 50 |
| 4210010000 | 10 | 2,75 | 15,5 | 75 | 0,150 kg | 50 |
| 4210013000 | 13 | 3,0 | 19 | 100 | 0,200 kg | 50 |
| 4210016000 | 16 | 3,5 | 23 | 120 | 0,295 kg | 50 |
| 4210019000 | 19 | 3,75 | 26,5 | 140 | 0,365 kg | 50 |
| 4210025000 | 25 | 4,25 | 33,5 | 180 | 0,530 kg | 50 |
Application: Flexible lightweight PVC hose, weather and aging resistant. Suitable for various water and compressed air applications in industry, construction and agriculture. Can also be used for the transport of pesticides in agricultural applications.
Remark:
- Cutted length is not possible
