4220 Ariaform®/TPU

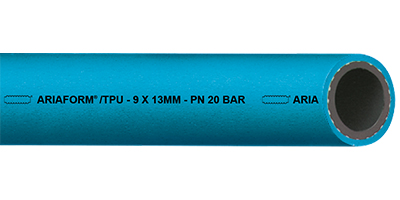

ARIAFORM®/TPUPolyurethane air pressure hose for pneumatic tools. Excellent resistant against oil, fuel, fat, acids and leach. Retains its shape, lightweight, extremely abrasive resistant, flexible and to be used for reel applications. Weather and ageing resistant. Marking:
|
|
| Norm | EN ISO 1307:2008 |
| WP at 20°C | 20 bar |
| BP | 60 bar |
| Min. temperature | -20 °C |
| Max. temperature | +60 °C |
| Compound tube | PU |
| Construction tube | Smooth |
| Color tube | Black |
| Compound cover | PU/PVC |
| Construction cover | Smooth |
| Color cover | Blue |
| Reinforcements | Polyester plies |
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 4220006000 | 6 | 2,0 | 10 | 40 | 0,070 kg | 50 |
| 4220008000 | 8 | 2,0 | 12 | 50 | 0,085 kg | 50 |
| 4220009000 | 9 | 2,0 | 13 | 60 | 0,095 kg | 50 |
| 4220010000 | 10 | 2,25 | 14,5 | 60 | 0,120 kg | 50 |
| 4220013000 | 13 | 2,5 | 18 | 80 | 0,165 kg | 50 |
Application: Hose is dimensionally stable, lightweight, very wear resistant, flexible and has great resilience so that it always returns to its original shape. The Ariaform/TPU is ideal for applications with pneumatic tools and as a reel hose. Excellent resistant to oil, petrol, greases, light acids and alkalis.
Remark:
- Cutted length is not possible
