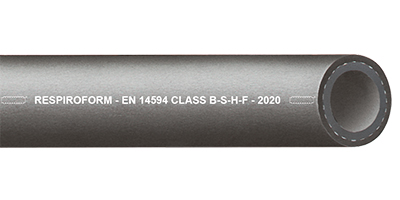

4221 Respiroform
RESPIROFORMThermoplastic air breathing hose applicable for breathing air equipment and fire fighting purposes. Marking:
|
|
| Norm |
EN ISO 1307:2008
EN 14594
|
| WP at 20°C | 30 bar |
| BP | 90 bar |
| Min. temperature | -20 °C |
| Max. temperature | +70 °C |
| Electr. resistance cover | Between 10³ Ω till 10⁹ Ω |
| Compound tube | TPU |
| Construction tube | Smooth |
| Color tube | Transparent |
| Compound cover | Thermoplastic elastomer |
| Construction cover | Smooth |
| Color cover | Black |
| Resistance cover |
Oil resistant
Flame resistant
Heat resistant
|
| Longitudinal stripes | 2 black electrical conductive longitudinal stripes |
| Reinforcements | Braided textile plies |
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 4221010000 | 9,5 | 3,25 | 16 | 60 | 0,180 kg | 50 |
Application: Standardized hose, suitable for various applications with breathing equipment at among others, firefighting, blasting work and tank cleaning
Remark:
- Cutted length is not possible
