4480 Armoflex®

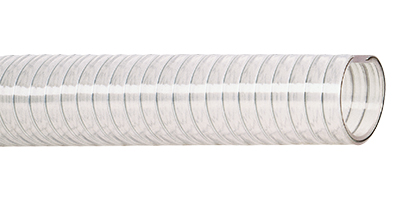

ARMOFLEX®Alimentary suction/discharge hose for heavy duty circumstances, suitable for industrial water, mud and dung. Extremely flexible and suitable for liquid foodstuffs. Marking: Regarding the overpressure we would like to refer to the guidelines for the right use of the hoses which are mentioned on our website.
|
|
| Norm |
EN ISO 1307:2008
EU 1935/2004
EU 10/2011 Cat. A
EU 10/2011 Cat. B
EU 10/2011 Cat. C
LFGB
|
| Vacuum | 0,9 bar |
| Min. temperature | -15 °C |
| Max. temperature | +60 °C |
| Compound tube | Soft PVC |
| Construction tube | Smooth |
| Color tube | Transparent |
| Compound cover | Soft PVC |
| Construction cover | Smooth |
| Color cover | Transparent |
| Reinforcements | Steel spiral |
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | WP at 20°C bar | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|---|
| 4480010000 | 10 | 3,0 | 16 | 10 | 30 | 0,200 kg | 30 |
| 4480012000 | 12 | 3,0 | 18 | 9 | 36 | 0,210 kg | 30 |
| 4480014000 | 14 | 3,0 | 20 | 9 | 42 | 0,230 kg | 50 |
| 4480016000 | 16 | 3,0 | 22 | 9 | 48 | 0,260 kg | 50 |
| 4480018000 | 18 | 3,0 | 24 | 8 | 54 | 0,320 kg | 50 |
| 4480020000 | 20 | 3,5 | 27 | 8 | 60 | 0,360 kg | 50 |
| 4480025000 | 25 | 4,0 | 33 | 8 | 75 | 0,500 kg | 50 |
| 4480032000 | 32 | 4,0 | 40 | 8 | 96 | 0,680 kg | 50 |
| 4480038000 | 38 | 4,5 | 47 | 7 | 114 | 0,820 kg | 50 |
| 4480040000 | 40 | 4,5 | 49 | 7 | 120 | 0,900 kg | 50 |
| 4480045000 | 45 | 4,5 | 54 | 6 | 135 | 1,100 kg | 50 |
| 4480050000 | 51 | 5,0 | 61 | 5 | 153 | 1,280 kg | 50 |
| 4480060000 | 60 | 5,5 | 71 | 5 | 180 | 1,750 kg | 30 |
| 4480063000 | 63 | 6,0 | 75 | 5 | 189 | 1,800 kg | 30 |
| 4480075000 | 76 | 6,0 | 88 | 4 | 228 | 2,400 kg | 30 |
| 4480080000 | 80 | 6,5 | 93 | 4 | 240 | 2,570 kg | 30 |
| 4480090000 | 90 | 6,5 | 103 | 4 | 270 | 2,950 kg | 20 |
| 4480100000 | 102 | 7,0 | 116 | 3 | 306 | 3,800 kg | 20 |
| 4480110000 | 110 | 7,5 | 125 | 3 | 330 | 4,200 kg | 20 |
| 4480125000 | 127 | 8,0 | 143 | 3 | 381 | 4,800 kg | 20 |
| 4480150000 | 152 | 8,5 | 169 | 2 | 456 | 6,500 kg | 20 |
Application: Very flexible and robust PVC hose. Suitable for transit of for example (industry) water, mud, slurry and various other liquids. Extremely suitable for the transport of liquid food, as the hose is fully certified for the various food categories according to the European regulation EU 10/2011. The Armoflex hose is also frequently installed on slurry injectors in the agricultural sector.
Remark:
- Regarding the overpressure we would like to refer to the guidlines for the right use of the hoses which are mentioned on our website
- Cutted length possible
