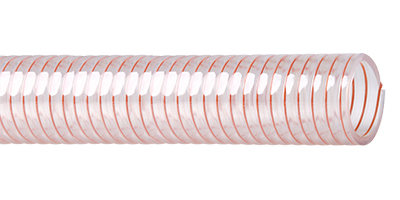

4483 Armoflex®/PU/FOOD
ARMOFLEX®/PU/FOODAbrasion resistant food quality suction and discharge hose certified food delivery hose for liquids and dry foods such as fruit juice, milk, sugar and milk powder till 40°C. Marking: Regarding the overpressure we would like to refer to the guidelines for the right use of the hoses which are mentioned on our website.
|
|
Norm |
EN ISO 1307:2008
EU 1935/2004
EU 10/2011 Cat. A
EU 10/2011 Cat. B
EU 10/2011 Cat. C
LFGB
EU 10/2011 Cat. D1
EU 10/2011 Cat. E
|
WP at 20°C | 5 bar |
Vacuum | 0,9 bar |
Min. temperature | -25 °C |
Max. temperature | +85 °C |
Compound tube | PU |
Construction tube | Smooth |
Color tube | Transparent |
Compound cover | PU |
Construction cover | Smooth |
Color cover | Transparent |
Reinforcements | Coated steel wire |
Description
Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
---|---|---|---|---|---|---|
4483038000 | 38 | 4,5 | 47 | 270 | 0,770 kg | 30 |
4483040000 | 40 | 4,5 | 49 | 280 | 0,820 kg | 30 |
4483050000 | 51 | 5,0 | 61 | 360 | 1,200 kg | 30 |
Application: Certified transparent food suction/discharge hose for liquid and dry food such as fruit juices, milk, sugar and milk powder up to 40°C. The hose is also suitable for transport of other wear resistant materials such as PVC granulate, grit, lime powder and other granulates. Hose can be used for transport of extremely wear resistant materials.
Remark:
- Regarding the overpressure we would like to refer to the guidlines for the right use of the hoses which are mentioned on our website
- Cutted length possible
