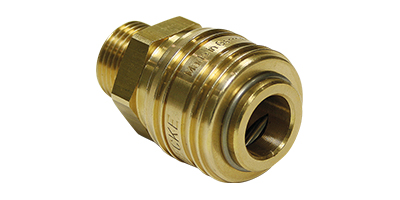

5235 Compressed air coupling DN 5,5
Compressed air coupling DN 5,5With male thread |
|
| Norm thread | DIN EN ISO 228-1 |
| Thread description | BSPP thread / G-thread |
| Material | Brass |
| WP | 35 bar |
| Min. temperature | -20 °C |
| Max. temperature | +100 °C |
| Max. flow rate (l/min) | 775 |
| Material seal/gasket | NBR |
| Compatible with |
Aro 210
Cejn 300
Orion 44510
Parker 50
Parker/Rectus serie 14/22
|
Description
| Art.-no. | Male thread | Weight |
|---|---|---|
| 5235006000 | 1/4″ | 0,085 kg |
| 5235010000 | 3/8″ | 0,090 kg |
| 5235013000 | 1/2″ | 0,009 kg |
