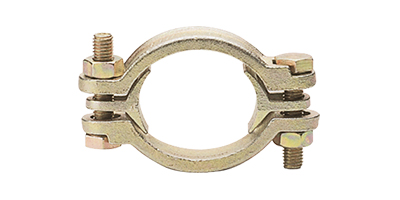

6300 Hercules hose clamps
Hercules hose clampsTwo bolted, heavy duty, with two spacers suitable for assembly of claw couplings DIN 3238 and DIN 3489.
|
|
| Norm | DIN 20039 A |
| Material | Cast iron |
Description
| Art.-no. | Minimum clamping range mm | Maximum clamping range mm | Weight |
|---|---|---|---|
| 6300020029 | 22 | 29 | 0,131 kg |
| 6300028035 | 28 | 34 | 0,136 kg |
| 6300032040 | 32 | 40 | 0,189 kg |
| 6300039049 | 39 | 49 | 0,248 kg |
| 6300048060 | 48 | 60 | 0,289 kg |
| 6300060076 | 60 | 76 | 0,393 kg |
| 6300077094 | 77 | 94 | 0,541 kg |
| 6300094115 | 94 | 115 | 0,714 kg |
| 6300113127 | 113 | 127 | 0,900 kg |
