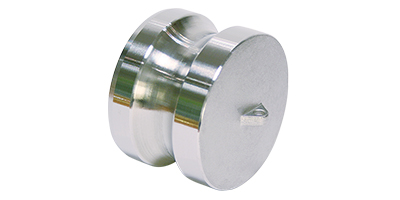

5526 Kamlok mannelijk type DP
KamlokMannelijk plug – type DP |
|
| Norm | A-A 59326 25.09.98 (voorheen MIL – C 27487) |
| Materiaal | RVS (1.4408) |
Beschrijving
| Art.-nr. | Nominale afmeting | WD bar | Gewicht |
|---|---|---|---|
| 5526013000 | 1/2″ | 16 | 0,050 kg |
| 5526019000 | 3/4″ | 16 | 0,072 kg |
| 5526025000 | 1″ | 16 | 0,094 kg |
| 5526032000 | 1.1/4″ | 16 | 0,175 kg |
| 5526038000 | 1.1/2″ | 16 | 0,218 kg |
| 5526050000 | 2″ | 16 | 0,328 kg |
| 5526063000 | 2.1/2″ | 10 | 0,474 kg |
| 5526075000 | 3″ | 10 | 0,653 kg |
| 5526100000 | 4″ | 8 | 1,022 kg |
| 5526125000 | 5″ | 7 | 1,550 kg |
| 5526150000 | 6″ | 5 | 2,720 kg |
