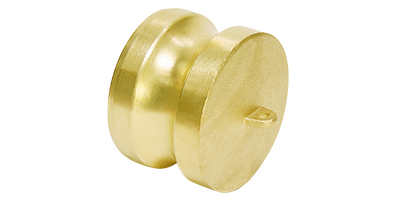

5596 Kamlok type DP
KamlokMannelijk plug – type DP |
|
| Norm | A-A 59326 25.09.98 (voorheen MIL – C 27487) |
| Materiaal | Messing |
Beschrijving
| Art.-nr. | Nominale afmeting | WD bar | Gewicht |
|---|---|---|---|
| 5596013000 | 1/2″ | 16 | 0,061 kg |
| 5596019000 | 3/4″ | 16 | 0,074 kg |
| 5596025000 | 1″ | 16 | 0,110 kg |
| 5596032000 | 1.1/4″ | 16 | 0,165 kg |
| 5596038000 | 1.1/2″ | 16 | 0,262 kg |
| 5596050000 | 2″ | 16 | 0,328 kg |
| 5596063000 | 2.1/2″ | 10 | 0,533 kg |
| 5596075000 | 3″ | 8 | 0,685 kg |
| 5596100000 | 4″ | 7 | 1,216 kg |
| 5596125000 | 5″ | 5 | 1,700 kg |
| 5596150000 | 6″ | 5 | 2,400 kg |
