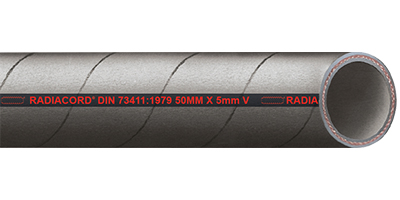

RADIACORD®/DIN

Radiator and hot water hose

suitable for the most common cooling liquids.

Marking:
 Radiacord® DIN 73411:1979 DN x wall thickness - year / quarter



Norm
EN ISO 1307:2008
DIN 73411 from July 1979
WP 4 bar
BP 12 bar
Min. temperature -30 °C
Max. temperature +130 °C
Compound tube EPDM
Construction tube Smooth
Color tube Black
Compound cover EPDM
Construction cover Fabric finish
Color cover Black
Reinforcements Textile plies
Article no.: 3117 Category:

Description

Art.-no. Ø Inner mm Wall mm Ø Outer mm Weight/mtr Length mtr.
3117010000 10 3,0 16 0,160 kg 40
3117013000 13 3,5 20 0,230 kg 40
3117015000 15 3,5 22 0,260 kg 40
3117018000 18 3,5 25 0,300 kg 40
3117020000 20 3,5 27 0,330 kg 40
3117022000 22 3,5 29 0,360 kg 40
3117025000 25 3,5 32 0,400 kg 40
3117028000 28 4,0 36 0,500 kg 40
3117030000 30 4,0 38 0,540 kg 40
3117032000 32 4,0 40 0,580 kg 40
3117035000 35 4,0 43 0,620 kg 40
3117038000 38 5,0 48 0,800 kg 40
3117040000 40 5,0 50 0,900 kg 40
3117042000 42 5,0 52 0,940 kg 40
3117045000 45 5,0 55 1,000 kg 40
3117048000 48 5,0 58 1,060 kg 40
3117050000 50 5,0 60 1,100 kg 40
3117055000 55 5,0 65 1,200 kg 40
3117060000 60 5,0 70 1,300 kg 40
3117065000 65 5,0 75 1,400 kg 40
3117070000 70 5,0 80 1,500 kg 40
3117075000 75 5,0 85 1,600 kg 40
3117080000 80 5,0 90 1,700 kg 40
3117090000 90 6,0 102 2,300 kg 40
3117100000 100 6,0 112 2,500 kg 20
3117110000 110 6,0 122 2,800 kg 20
3117120000 120 7,0 134 3,500 kg 20

Application: Suitable for the most common cooling liquids. Also suitable for hot water and cooling water applications.

Remark:

  • Cutted length possible

We recommend assembly with:
