3805 Superchem®/UPE/EN

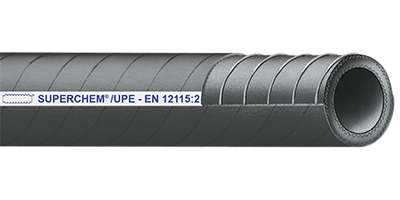

SUPERCHEM®/UPE/ENChemical suction and discharge hose suitable for the transport of acids, alkalics, salts, organic compounds (alcohols, esters, ketones, etc.) Marking: Max. temperature depends on the medium
|
|
| Norm |
EN 12115:2011
TRbF 131, part 2, § 5.5
|
| WP | 16 bar |
| BP | 64 bar |
| Vacuum | 0,9 bar |
| Min. temperature | -30 °C |
| Max. temperature | +100 °C |
| Electr. resistance tube | Electrical conductive <10⁶ Ω |
| Electr. resistance cover | Electrical conductive <10⁶ Ω |
| Eletr. resistance tube to cover | Antistatic <10⁹ Ω |
| Compound tube | UPE |
| Construction tube | Smooth |
| Compound cover | EPDM |
| Construction cover | Fabric finish |
| Color cover | Black |
| Reinforcements |
Textile plies
Steel spiral
|
Description
| Art.-no. | Ø Inner mm | Wall mm | Ø Outer mm | Bending radius mm | Weight/mtr | Length mtr. |
|---|---|---|---|---|---|---|
| 3805019000 | 19 | 6,0 | 31 | 187 | 0,710 kg | 40 |
| 3805025000 | 25 | 6,0 | 37 | 225 | 0,890 kg | 40 |
| 3805032000 | 32 | 6,0 | 44 | 262 | 1,080 kg | 40 |
| 3805038000 | 38 | 6,5 | 51 | 337 | 1,270 kg | 40 |
| 3805050000 | 50 | 8,0 | 66 | 412 | 2,100 kg | 40 |
| 3805063000 | 63 | 8,0 | 79 | 450 | 2,510 kg | 40 |
| 3805075000 | 75 | 8,0 | 91 | 525 | 2,920 kg | 40 |
| 3805100000 | 100 | 8,0 | 116 | 675 | 4,150 kg | 20 |
Application: High quality suction and pressure hose with an UPE tube which makes the hose suitable for transport of a large number of acids, alkalis, salts, organic materials (alcohol, esters, ketones etc.), aromatic hydrocarbons and other chemicals. The hose is extremely flexible and meets all the requirements set in the EN12115:2011 norm regarding the bending radius, flame retardant, elongation, burst pressure safety factor of 1:4, electrical resistance (thanks to the conductive tube, the charged static electricity can be safely discharged so that the hose can be used in various ATEX zones) etc. The hose is provided with a double crossed 0,2mm UPE layer so that there is a very small chance that the medium penetrates the tube. By having this, the Superchem/UPE/EN differentiates itself from various other products that are available on the market.
Remark:
- Max. temperature depends on the medium.
- Cutted length possible
