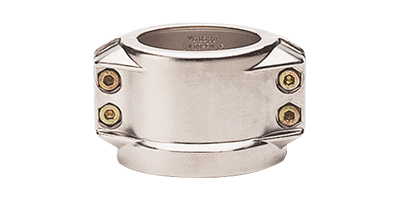

5560 Klemschalen
Klemschalen2-delige klemschalen voor montage van koppelingen met gladde- of combi slangpilaren voorzien van borgrand |
|
| Norm | EN 14420-3 |
| Materiaal | Aluminium |
| WD | 25 bar |
| Toebehoren | Inclusief inbusbouten en moeren |
Beschrijving
| Art.-nr. | Ø Inw. mm | Wand mm | Minimale klembereik mm | Maximale klembereik mm | Gewicht |
|---|---|---|---|---|---|
| 5560013005 | 13 | 5,0 | 22 | 24 | 0,110 kg |
| 5560019006 | 19 | 6,0 | 30 | 33 | 0,140 kg |
| 5560025005 | 25 | 5,0 | 34 | 37 | 0,150 kg |
| 5560025006 | 25 | 6,0 | 36 | 39 | 0,150 kg |
| 5560032005 | 32 | 5,0 | 41 | 44 | 0,140 kg |
| 5560032006 | 32 | 6,0 | 43 | 46 | 0,160 kg |
| 5560032008 | 32 | 8,0 | 47 | 50 | 0,170 kg |
| 5560038005 | 38 | 5,0 | 47 | 50 | 0,160 kg |
| 5560038065 | 38 | 6,5 | 50 | 53 | 0,190 kg |
| 5560038008 | 38 | 8,0 | 53 | 56 | 0,180 kg |
| 5560038010 | 38 | 10,0 | 57 | 60 | 0,180 kg |
| 5560040007 | 40 | 7,0 | 53 | 56 | 0,190 kg |
| 5560040010 | 40 | 10,0 | 58 | 61 | 0,190 kg |
| 5560050005 | 50 | 5,0 | 59 | 62 | 0,270 kg |
| 5560050006 | 50 | 6,0 | 62 | 64 | 0,260 kg |
| 5560050008 | 50 | 8,0 | 63 | 67 | 0,300 kg |
| 5560050010 | 50 | 10,0 | 69 | 71 | 0,320 kg |
| 5560063006 | 63 | 6,0 | 74 | 77 | 0,440 kg |
| 5560063008 | 63 | 8,0 | 78 | 82 | 0,430 kg |
| 5560063010 | 63 | 10,0 | 84 | 87 | 0,460 kg |
| 5560075005 | 75 | 5,0 | 85 | 88 | 0,460 kg |
| 5560075006 | 75 | 6,0 | 87 | 90 | 0,450 kg |
| 5560075008 | 75 | 8,0 | 88 | 93 | 0,460 kg |
| 5560075010 | 75 | 10,0 | 94 | 97 | 0,510 kg |
| 5560080008 | 80 | 8,0 | 94 | 97 | 0,460 kg |
| 5560100065 | 100 | 6,5 | 111 | 115 | 1,200 kg |
| 5560100008 | 100 | 8,0 | 114 | 119 | 1,150 kg |
| 5560100010 | 100 | 10,0 | 118 | 122 | 1,150 kg |
| 5560100012 | 100 | 12,0 | 122 | 126 | 1,500 kg |
| 5560125010 | 125 | 10,0 | 143 | 148 | 1,740 kg |
| 5560150010 | 150 | 10,0 | 168 | 174 | 3,290 kg |
| 5560150013 | 150 | 13,0 | 174 | 180 | 3,950 kg |
| 5560200012 | 200 | 12,0 | 222 | 229 | 6,750 kg |
